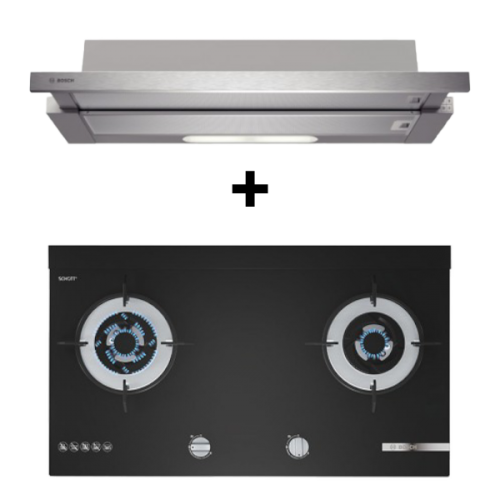

(BUNDLE)BOSCH DHI923GSG Telescopic Cooker Hood(90cm) + Bosch PMD82D31AF 2 Burner Gas hob
DHI923GSG Specifications

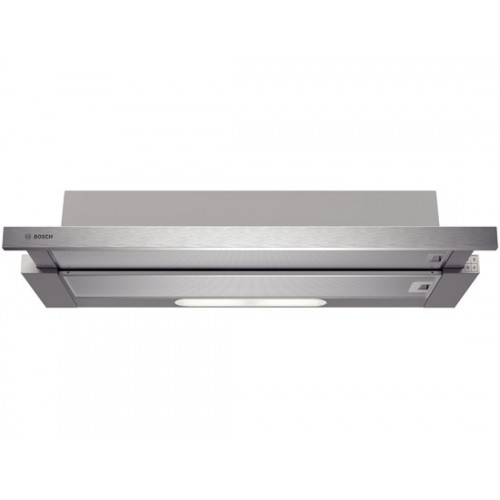

The telescopic cooker hood that disappears into your upper cabinet, giving you a sleek kitchen front.

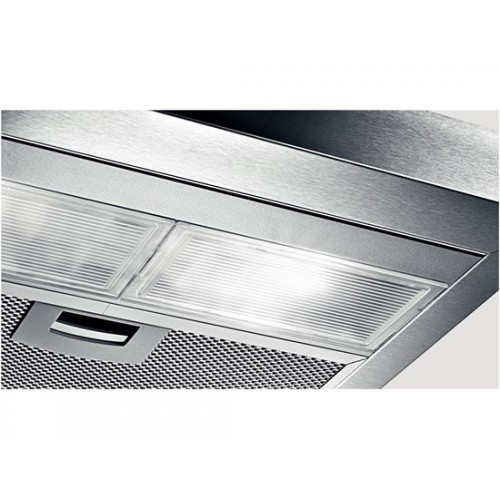

- LED lighting: For optimal, energy-efficient illumination of your hob
- 3-Speed Power Level Options To Suit Your Cooking Style And Recipes
- Dishwasher safe aluminum mesh filters
- Ducted or Non-ducted Options
Technical Specifications
Performance
• Max. extraction rate according to DIN/EN 61591:380 m³/h
• 3 speeds
Comfort
• 2 x LED spot 3W
• Removable metal grease filter, dishwasher safe
• Energy Efficiency Class: D
Technical information:
• Dimensions of the product, with chimney (if exists) (HxWxD mm): 180 x 898 x 300
• Required niche size for installation (HxWxD mm): 140 x 850 x 280
• Suitable for ducted or recirculating operation
• 120 mm diameter pipe
• Length of mains cable: 200 cm
• Plug type_old: GB plug
Technical Specifications
General
Width 90 cm
Depth of the product 300 mm
Built-in / Free-standing Built-in
Operating Mode Convertible
Max. air recirculation 200 m³/h
Sound pressure max. normal 70
Energy efficiency rating D
Total annual energy consumption 65.7 kWh/annum
Construction type
Diameter of air outlet 120 mm
Colour Stainless steel
Grease filter material Washable aluminium
Grease filter type Kassette
Installation type Built-in
Material of the body Lacquered
Motor location Integrated motor in hood body
Number of motors 1
Operating Mode Convertible
Typology Pull-out
Connection
Connection rating 136 W
Length electrical supply cord 200 cm
Frequency 50 Hz
Total power of the lamps 6 W
Total power of the motors 130 W
Voltage 220-240 V

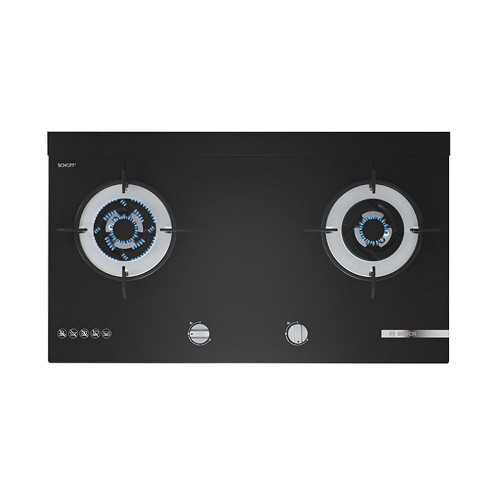

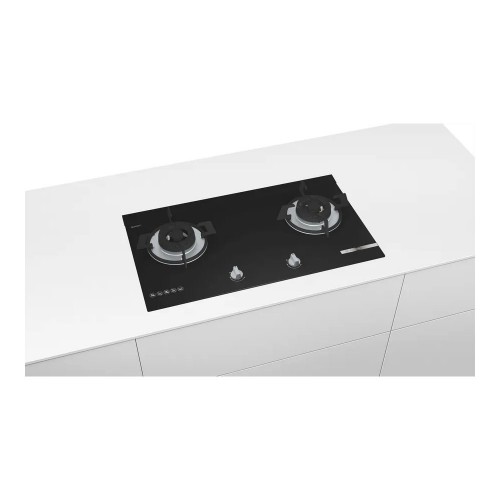

PMD82D31AF Specifications
- Surface colour: elegant black tempered-glass design.
- Sword knobs: for an ergonomic control.
Technical Specifications
Cooking Zone
2 gas burners
Left burner maximum power up to 5000 W (depending on gas type)
Right burner maximum power up to 5000 W (depending on gas type)
Design
Black glass
Sword control knobs
Enameled pan supports
Key Functions
Pure brass burner
Preset nozzle: town gas (10mbar)
Knob ignition
Flame failure safety device
Technical Information
Dimensions of the product (HxWxD mm) : 150 x 780 x 450
Required niche size for installation (HxWxD mm) : 80 x 700-700 x 400-400
Total connected load gas: 10 KW
Length of mains cable: 120 cm
